CMR 1/72 Short S.23


Czech Master Resin No. 200
1/72 Short S.23, C-Class Flying Boat

By Jim Schubert

History

I will deal here only with the history of the S.23 type through the start of WWII in Europe on September 1, 1939 as I suspect CMR will reissue this kit with full wartime camouflage and markings for the modelers, apparently the majority, who insist upon building everything in military markings.

A total of 31 S.23s were built. They were designed in 1934 to fulfill the “Empire Air Mail Programme” for carrying, without surcharge, letter mail throughout the Empire and its Dominions. The first was launched from Short’s Shop Number 3 onto the river Medway at Rochester in Kent on July 2, 1936 and first flew two days later when it was also delivered to Imperial Airways, Ltd. Nowadays, company and certification testing takes over a year for a major new commercial type. Imperial A W was the first recipient of the type. Qantas received the last three S.23s and the last three of British Overseas Airways Corporations S.23s were also diverted to Qantas.

S.23s served from mid 1936 through WWII with Coriolanus flying the last service of the type from Noumea to Sydney on December 20, 1947 in service with Qantas By 1954 all of the S.23 s and their developments, the S.30s and S.31s, had been scrapped. None survive. Coriolanus, when it was retired, was the high time S.23 having flown for over 18,500 hours and over 2,523,600 miles. In those days operators had no need to record flight cycles as the planes were unpressurized. Today maintenance intervals, for pressurized planes, are stated in terms of limiting hours or cycles, whichever first occurs. In their day it took an S.23 about 10 days for the Southampton to Sydney run. Today it takes a 747 about 15 hours to fly non-stop from London to Sydney.

Here’s a list of all the S.23s:

REGISTRATION

SHIP NAME

SERIAL

G-ADHL CANOPUS S.795
G-ADHM CALEDONIA S.804
G-ADUT CENTAURUS S.811
G-ADUU CAVALIER S.812
G-ADUV CAMBRIA S.813
G-ADUW CASTOR S.814
G-ADUX CASSIOPEA S.815
G-ADUY CAPELLA S.816
G-ADUZ CYGNUS S.817
G-ADVA CAPRICORNUS S.818
G-ADVB CORSAIR S.819
G-ADVC COURTIER S.820
G-ADVD CHALLENGER S.821
G-ADVE CENTURION S.822

G-AETV CARIOLANUS S.838
G-AETW CALPURNIA S.839
G-AETX CERES S.840
G-AETY CLIO S.841
G-AETZ CIRCE S.842
G-AEUA CALYPSO S.843
G-AEUB CAMILLA S.844
G-AEUC CORINNA S.845
G-AEUD CORDELIA S.846
G-AEUE CAIRNGORM/CMERONIAN S.847
G-AEUF COTSOLD/CORINTHIAN S.848
G-AEUG CHEVIOT/COOGEE S.849
G-AEUH COOLIN/CORIO S.850
G-AEUI CALPE/COORONG S.851

G-AFBJ/VH-ABA CARPENTARIA S. 876
G-AFBK/VH-ABB COOLANGOTTA S. 877
G-AFBL/VH-ABF COOEE S. 878

The Kit

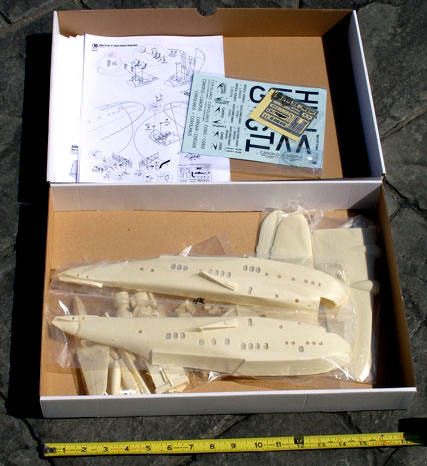

WOW! This is a big one! In my opinion it is clearly the kit of the year. It is pricey too. Hannants offer it for about US$230.00. I think it’s worth it. It’s not perfect, mind you, and it is certainly not a Tamiya shake-and-bake kit but it is a superb kit of a very impressive large airplane, it is slightly larger than a Sunderland, is an icon of its age and no other kit manufacturer would ever undertake it in 1/72 scale. This is the largest kit from CMR since their earlier Avro York conversion for the Lancaster reviewed her in August 2005.

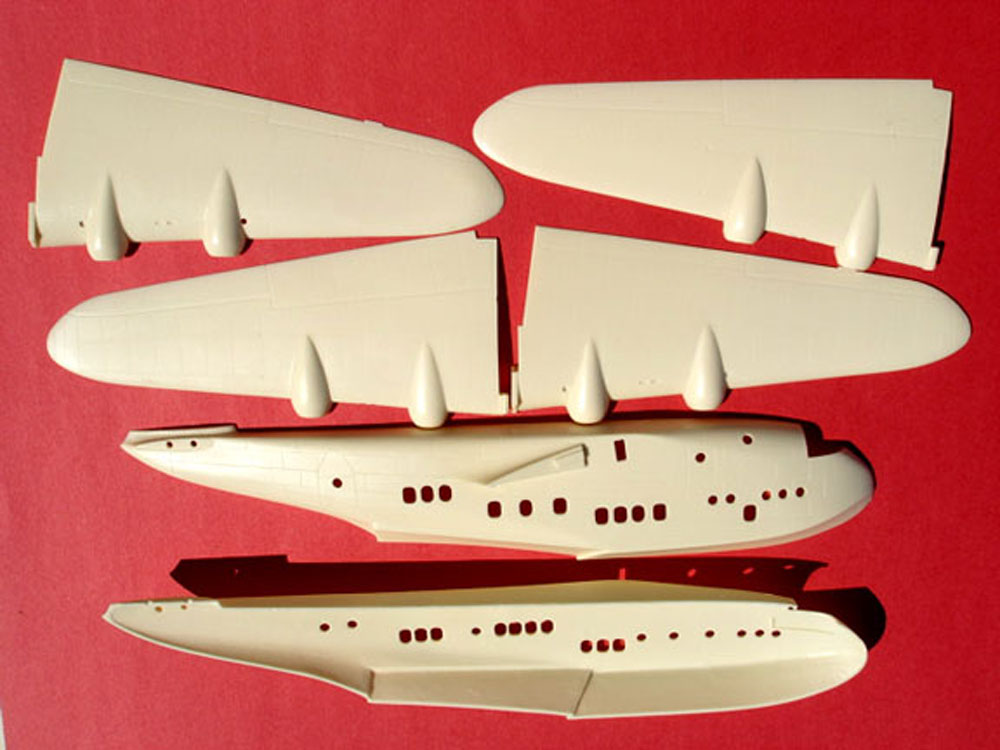

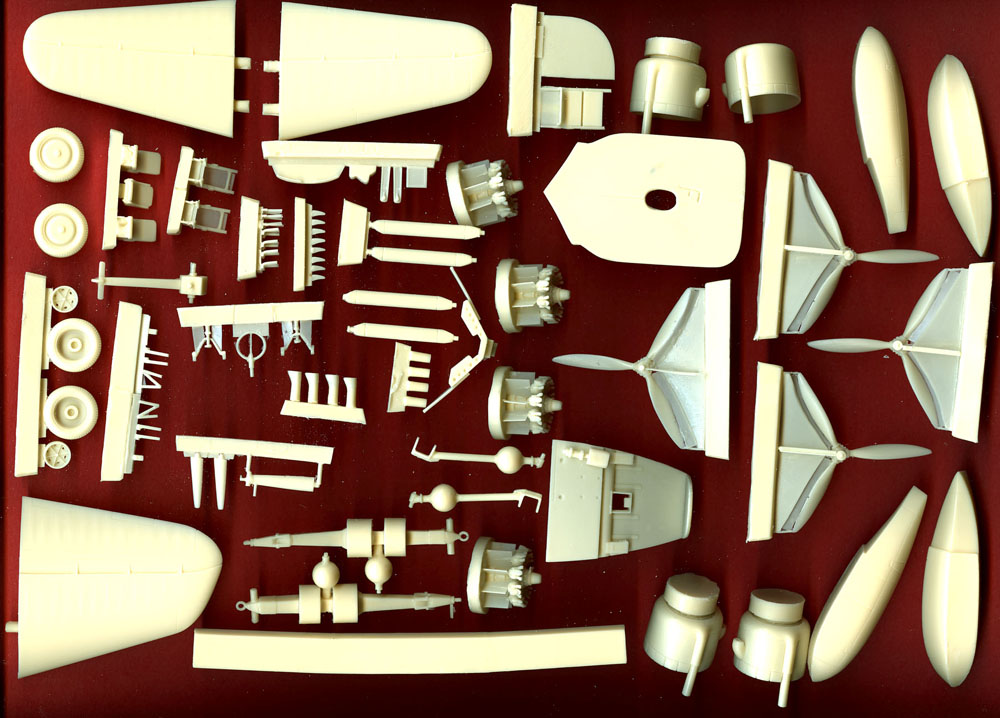

There are nine major resin parts in the kit. Each fuselage half is 14.75 inches long and each wing half is 9 inches long. The finished model will have a wingspan of about 20 inches. There are 101 minor resin parts, one clear resin canopy along with 42 clear resin windows and a two-part clear resin landing light. This is the clearest clear resin I’ve seen since WTH Model Products ceased operations six years ago. As a sop to those of us who are dubious about the clarity of “clear resin” CMR have also provided two very nice vac-formed canopies. It will be a toss-up as to which to use.

An Eduard pre-painted fret of photo-etched metal details is included along with an Eduard painting mask for the canopy and windows.

Optional exhaust and stabilizing floats are provided and the RDF loop antenna may be installed extended or retracted. Two optional antenna masts are also included; consult your references.

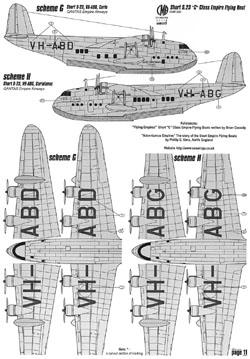

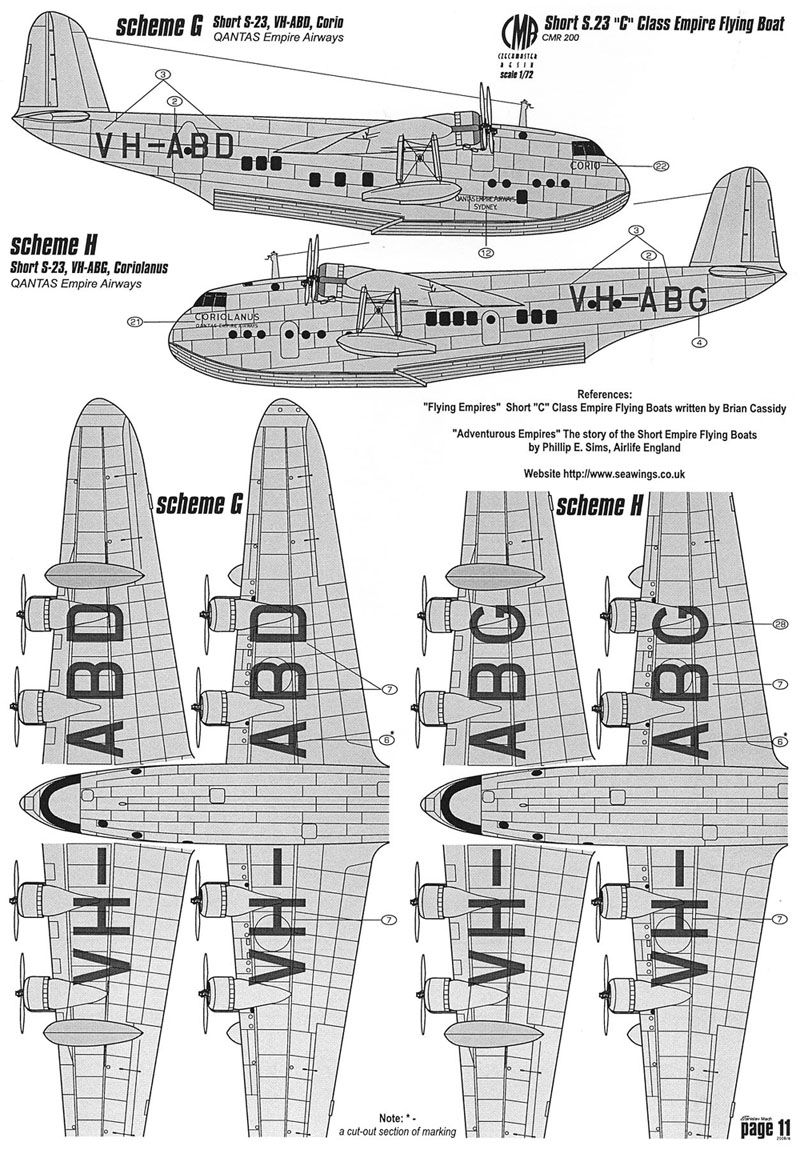

The decal sheet provides three sets of markings for the first S.23, Canopus G-ADHL, one for Corsair G-ADVB, two for Cooee G-AFBL and as VH-ABF, one for Corio VH-ABD and one for Coriolanus G-AFTV.

CMR provide 14 pages of instructional material, which includes six of assembly instructions, one on the use of the painting masks, five on colors and markings and three on the history of the type and on the specific airplanes provided.

Conclusion

This big beauty is typical of Czech Master Resin’s current quality and it is amazing to me that they have been able to translate that quality from subjects the size of Spitfires and Mustangs to the size of this beauty. Kudos to Petr Buchar and Radoslav Kazda for their fine work providing us with this great kit.

Buy one; it’s only money and life is short.

References

My main reference is the two-part article by John Stroud in his Wings of Peace series in Aeroplane monthly for December 1989 and January 2000. Checking the index for Aeroplane Monthly/Aeroplane I found 31 notations on the S.23. Some of these are for only one photo; others are for articles.

An indispensable and easy to use additional reference is www.seawings.co.uk
