Valom 1/72nd Polikarpov TIS (MA)
|
 |
History
The request for proposals for a Tyazhelyi Istrebitel Soprovzhdeniya
(TIS - heavy escort fighter) was received by the Polikarpov Design bureau
in November 1938. However, due to other already in-progress airframes
the development of the TIS didn't start until the third quarter of 1940.
The first prototype of Polikarpov's TIS, the "A",  finally
flew in September 1941. The "A" was equipped with two Mikulin
water-cooled in-line engines, AM-37s. It was only equipped with four ShKAS
7.2mm machine guns in the nose and two ShVAK in the wings. Two other ShKAS
guns were operated by the radio-operator/gunner who sat in the rear cockpit.
Not only was there a machine gun in the "usual" position firing
from the top of the fuselage towards the rear of the plane, but there
was also another gun the fired under the fuselage that the gunner could
reach by kneeling down in his cockpit. Due to problems with the AM-37
engines and unsatisfactory directional stability, the Polikarpov bureau
enlarged the tail and replaced the AM-37s with AM-39 engines (but due
to the unavailability of the AM-39s two AM-37Fs from the Il-2 program
were used instead). In addition, Polikarpov changed the armament, replacing
the four ShKAS machine guns in the nose with two ShVAK 20mm cannon. While
the two ShKAS wing guns were supposed to be replaced by the 45mm 111P-type
cannon with 45 rounds per gun, this prototype was instead flown with two
37mm cannon. The lower-fuselage ShKAS was removed but the upper was retained,
replacing the TSS-1 mounting with an upper gun mounting of a VUB-1 bomber,
carrying the UBT machine gun with 200 rounds. This new machine - labeled
the "MA" - also differentiated from the "A" by enclosing
the engine radiators in the wings, resulting in openings on each side
of the wing at the leading edge.
Only 15 flights were made in the TIS (MA) resulting in a total flying
time of nine hours. Damage caused by a brake failure on 29 June 1944 was
repaired in a month, but the TIS was ill-fated. On 16 September 1944 the
TIS (MA) was damaged again during a belly-landing due to landing gear
failure. At this point the aircraft was not restored and the project was
stopped.
The Kit

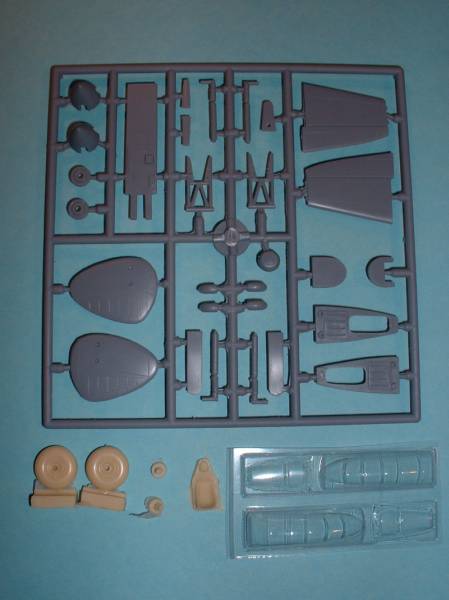

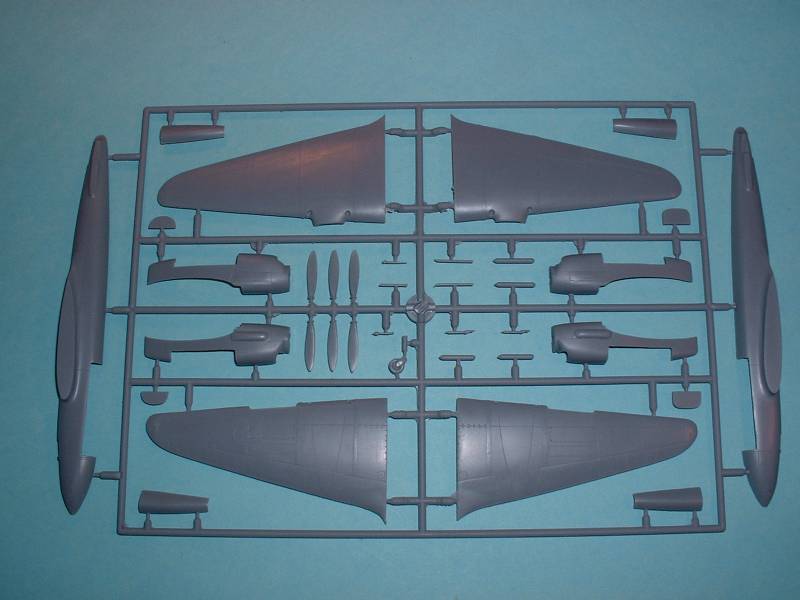

The Valom 1/72nd Polikarpov TIS (MA) consists of 64 injected plastic,

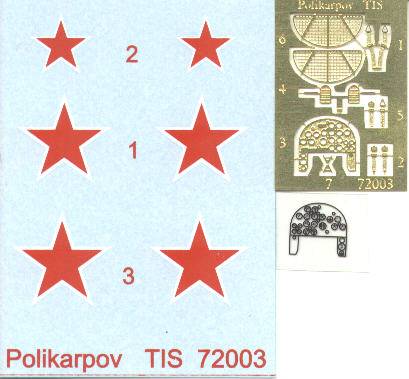

4 resin, 10 photoetch, 4 vacuform canopies (which includes extras "just
in case") and a piece of film for the instrument panel. Decals consist
of stars only as it was a prototype.
 The
molding is very nicely done. Valom has come a long way since the Su-6
and I definitely appreciate it. My only complaint is that some of the
panel lines weren't engraved all the way (panel line detail is both raised
and engraved) so there is some panel line rescribing. However, that is
my only complaint and the level of detail is much better than their first
offering.
Although the instructions - at first - might appear to be a little difficult
to follow, after reading through them a couple of times it all begins
to make sense. In addition, there are a number of "detailed drawings"
for some of the subassemblies to show just how some parts are to line
up with other parts. For example, when building the cockpit there's a
detailed sub-drawing showing exactly how all the pieces are to be fit
together and how it should look once assembled.
Naturally construction starts with the cockpit. Once all the cockpit
pieces are together the instructions take you into the build-up of both
nacelles, building both side-by-side. One item I will deviate from here
is the addition of the landing gear. Valom has you assemble these now,
prior to adding the nacelles to the wings. Right now - only looking at
the kit in the box and the instructions with building it - I would leave
the landing gear off until last. Only kit construction will tell all later.
Another construction change you may want to make is with the propellers.
Valom has you mount the props and spinners to the nacelles also prior
to adding the nacelles to the wings. This could make masking very tedious
so unless you want the props to turn, I would leave the props off until
after final painting. One part Valom brought up to my attention was the
lack of spinner "backing plates" within the kit. They recommend
adding spinner "backing plates" - from either sheet styrene
or filling in the entire spinner with putty - otherwise it will be quite
noticeable without these "backing plates".
Once that is accomplished then you move into putting the cockpit into
the fuselage halves (as well as other pieces, like the tailwheel well),
joining the cockpit halves together and then adding all of the other major
pieces to the fuselage. When it comes to mating the nacelles to the wings,
Valom advises that "something" happened during the mold-making
process, so a little needs to be sanded from the wing mating edges (of
the nacelle) prior to gluing the nacelles to the wings. Once all of the
major pieces are assembled, construction has you add the clear parts,
which is something I advise. That way, if the fit isn't good in
these areas then you can putty them to smooth it all out.
 Valom
shows a brown/green scheme on top with blue undersides. I would suspect
that with the timeframe the aircraft flew, those colors would be A-21M
Brown, AMT-4 Green and AMT-7 Blue. According to Soviet Combat Aircraft
of the Second World War: Vol. 2, the color demarcations Valom provides
aren't 100% correct. In that book is an excellent port side-shot with
a clear view to how the colors were laid out. In addition, there is a
frontal, nose-shot of the port side. This means you can accurately portray
the color demarcations of the port side of the aircraft. Unfortunately
no photos of the starboard side - nor of the uppers - exist in that book,
so you might want to follow Valom's outline for those aspects of the aircraft.
(Upon further reflection, I'm not at all sure that the colors would be
A-21M and AMT-4 - I'm figuring on AMT-4 Green and A-24m Green, but I'm
still researching this.)
Conclusion
This is a very well done model showing that Valom has come a long way
in only three kits. While I personally enjoyed building their Su-6 (while
others found fault with it) I think the TIS (MA) will be even a better
build. Using the tips that Valom sent should pave the way for a better
build. You should see a full-build review of this machine in the next
few months. Highly recommended, especially if you like Soviet GPW prototypes.
Thanks to Valom and Squadron
Mail Order for supplying the review model.
References
Gordon, Yefim and Dmitri Khazano with Alexander Medved', Soviet
Combat Aircraft of the Second World War Volume 2: Twin-Engined Fighters,
Attack Aircraft and Bombers, Midland Publishing Limited, England,
1999.
|
|
